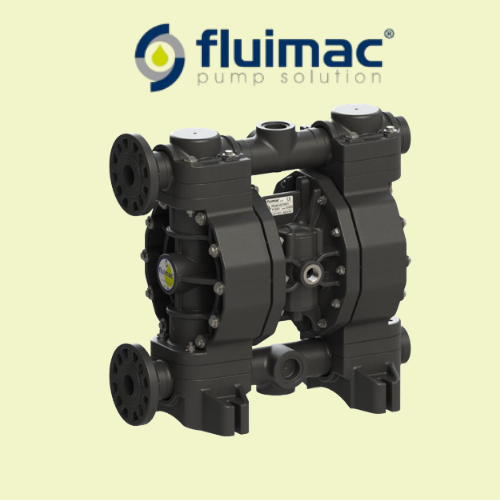

ATEX CERTIFIED AODDP

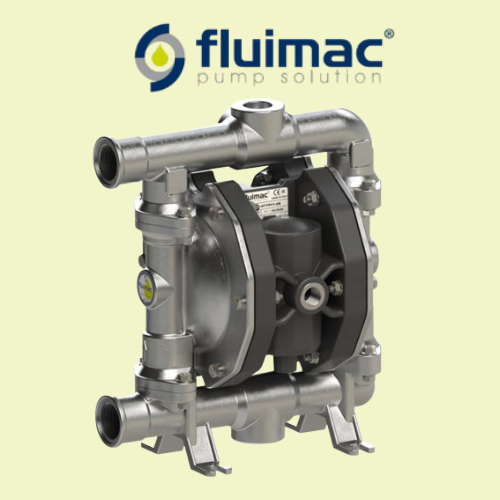

FDA CERTIFIED FOOD GRADE AODDP

Industrial-Grade Air Operated Diaphragm Pumps (AODDP) Reliable, Seal-Less Fluid Transfer Solution Across South Africa.

South Africa’s Premier Air Operated Double Diaphragm Pump Specialists
🧪
Chemical Processing Excellence
Our chemical resistant AODD pumps are engineered for demanding industrial chemical applications. Handling aggressive chemicals, corrosive acids, and hazardous solvents, our double diaphragm pumps deliver unmatched safety and reliability for pharmaceutical, agrochemical, and specialty chemical manufacturing processes.
🏭
Petrochemical Pump Solutions
Specialized petrochemical diaphragm pumps designed for refineries, fuel terminals, and oil processing facilities. Our explosion-proof AODD pumps feature ATEX certification and handle flammable liquids, hydrocarbons, and petroleum products with complete safety compliance and operational excellence throughout South Africa.
⚙️
Advanced Material Technology
Our self-priming AODD pumps feature premium PTFE diaphragms, stainless steel construction, and chemical compatibility ratings. Delivering leak-free operation, run dry capability, and low maintenance performance for critical industrial chemical transfer, water treatment, and petrochemical processing applications.
Expert advise available NOW (CLICK HERE)

EXPLORE OUR PHOENIX STANDARD DIAPHRAGM PUMP RANGE

CLICK ON SELECTED PUMP IMAGE FOR DATA PDF

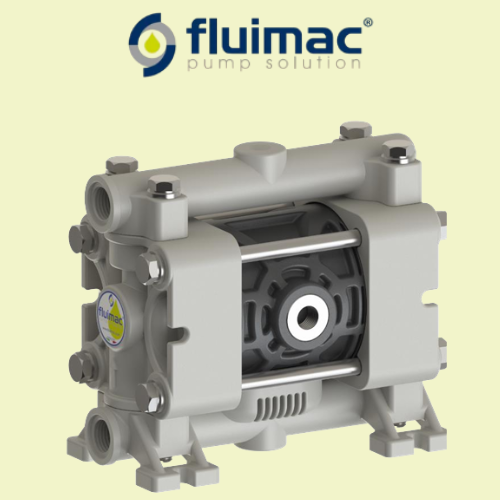

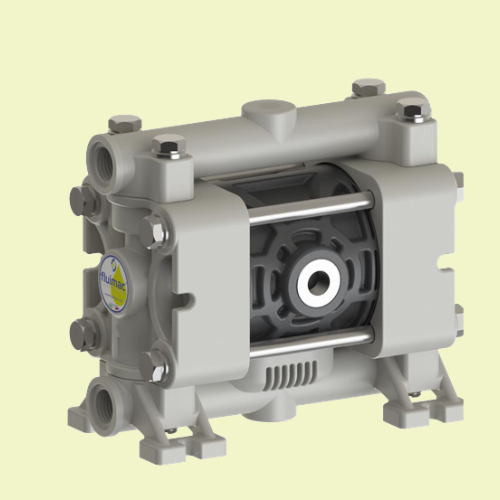

Image of Air Operated Double Diaphragm Pump Fluimac P8

1/4" Mini AODDP is a perfect Chlorine Metering Pump.

FLUIMAC Model P 4
Port Size 1/4" thread BSP (6,35mm)
Maximum flow rate of 4 litres per minute.
Maximum pressure is 8 Bar.
Available in Polypropylene, PVDF.

1/4" Mini AODDP ideal Chemical Dosing Pump.

Fluimac Model P 8
Port size 1/4" thread BSP (6,35mm)
Maximum flow rate of 8 litres per minute.
Maximum pressure is 8 Bar
Available in Polypropylene,PVDF

3/8" Small Sealless Chemical Transfer Pump

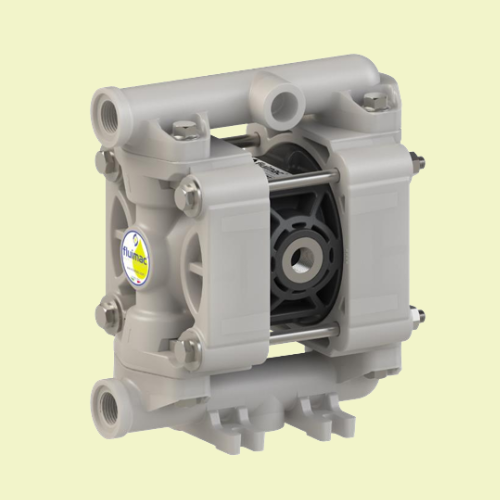

Fluimac Model P 20
Port Size 3/8" (9,5 mm)
Maximum flow rate of 20 litres per minute Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

1/2" AODDP is ideal for Decanting Chemicals.

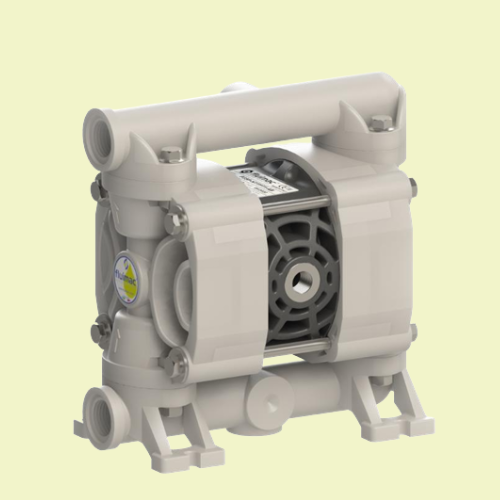

Fluimac Model P 35
Port size 1/2" threaded BSP (12,7 mm)
Maximum flow rate of 35 litres per minute
Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

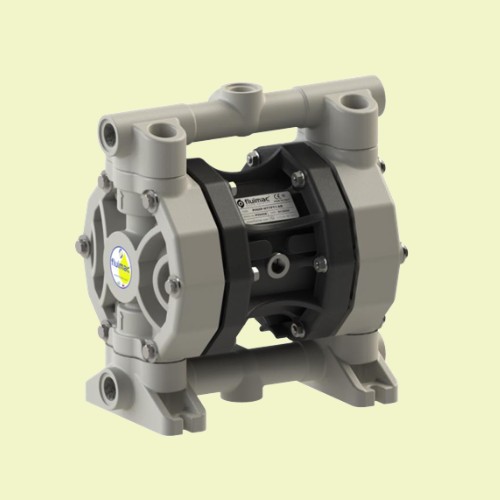

1/2" Pneumatic Chemical Pump

Fluimac Model P 55
Port size 1/2" threaded BSP (12,7 mm)
Maximum flow rate of 55 litres per minute
Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

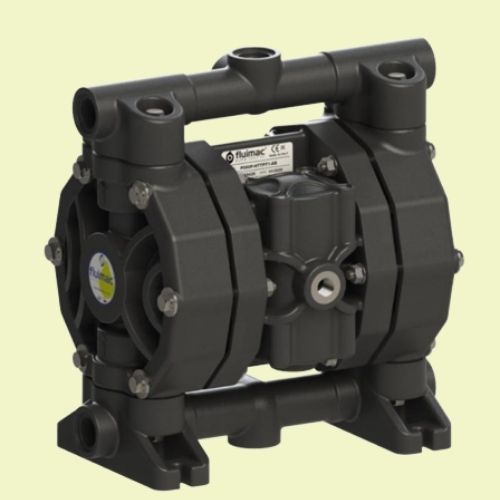

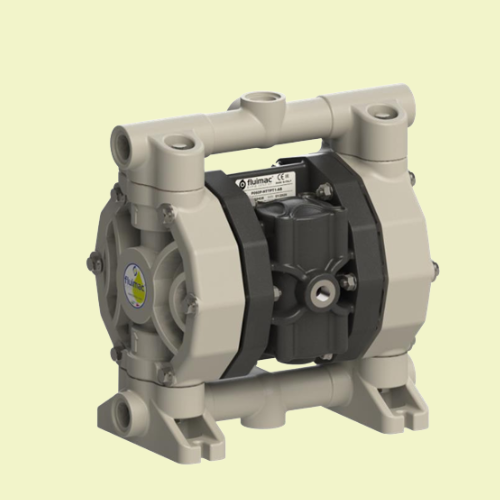

1/2" Air-operated, Seal-less Chemical Pump.

Fluimac Model P 60
Port size 1/2" threaded BSP (12,7 mm)
Maximum flow rate of 60 litres per minute Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

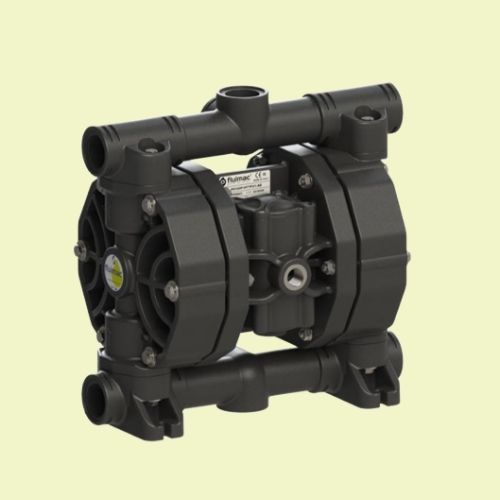

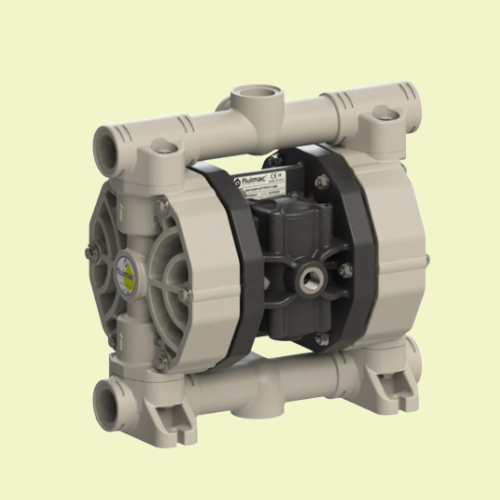

3/4" AODDP for Chemical Transfer Pump

Fluimac Model P 90
Port size 3/4" threaded BSP (19,5mm)
Maximum flow rate of 90 litres per minute Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

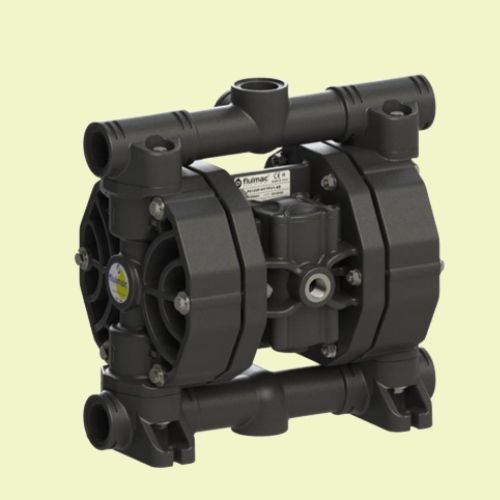

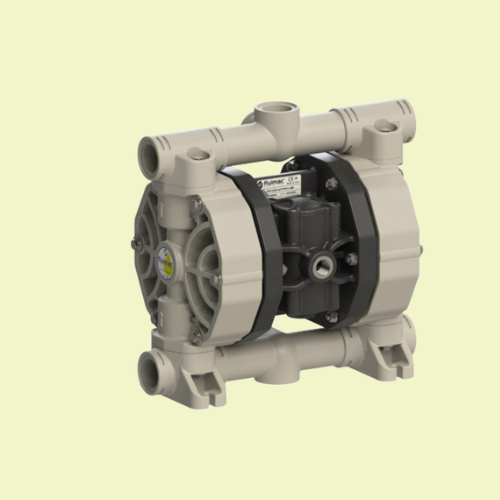

1" Double Diaphragm Pump for Bulk Chemical Transfer Pump

Fluimac Model P 120
Port size 1" threaded BSP (25,4 mm)
Maximum flow rate of 120 litres per minute. Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

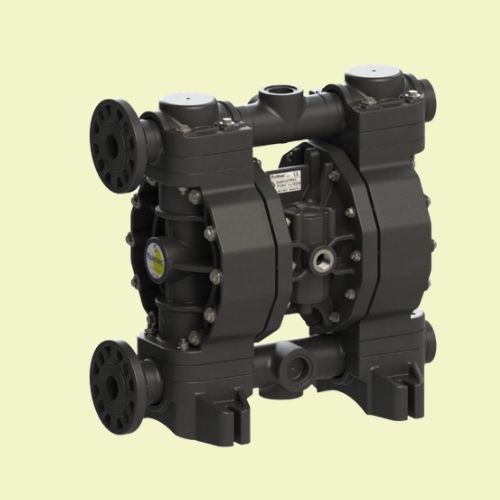

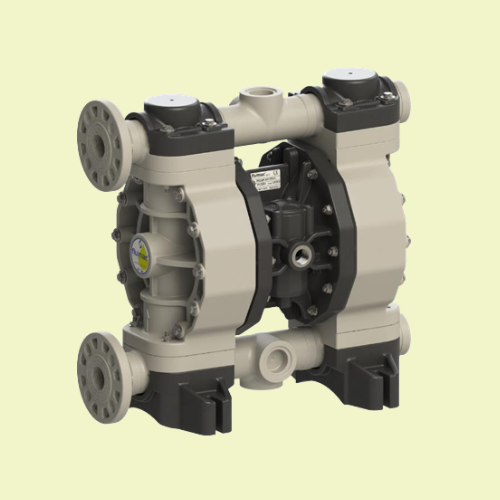

1" Heavy Duty AODDP Flanged Ports Pump

Fluimac Model P170
Port size 1" (25,4mm) Flanged
Max flow rate of 170 litres per minute
Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

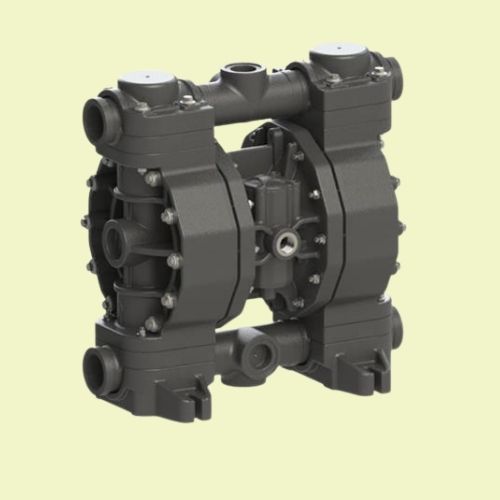

1" Heavy Duty Threaded Port Diaphragm Pump

Fluimac Model P171
Port size 1" (25,4mm)Threaded
Maximum flow rate of 170 litres/minute
Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

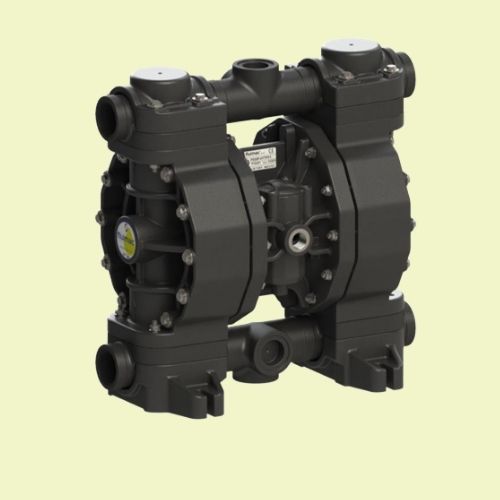

Image of FLUIMAC LIQUID MOVERS Air Diaphragm Pump for Chemical Transfer

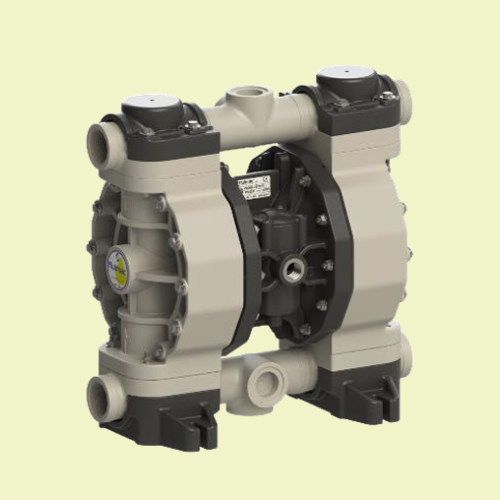

1 1/4" AODD Pump for High Volume Liquid Moving

Fluimac Model P252
Port size 1 1/4" (31.75 mm) threaded &flanged.
Maximum flow rate of 250 litres/minute
Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

Image of High Volume Liquid Movers Chemical Diaphragm Pump.

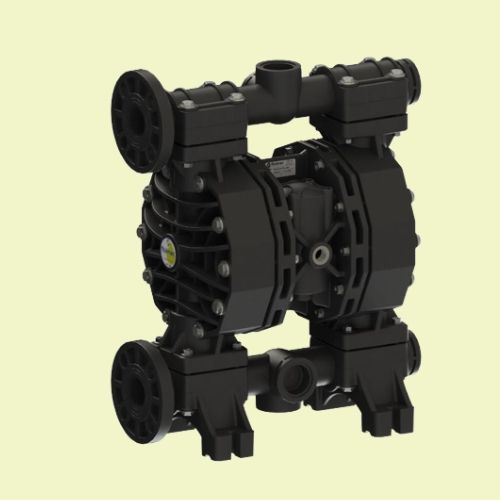

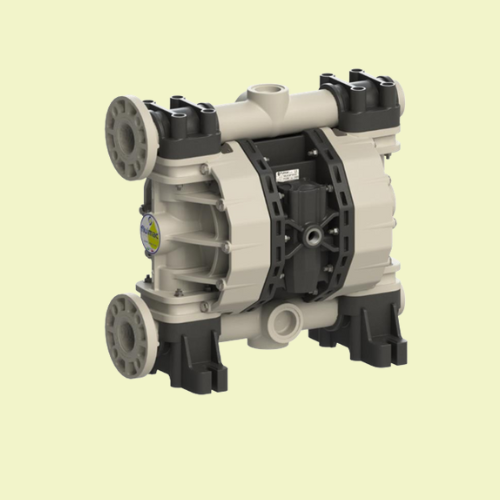

1 1/2" Heavy Duty Bulk Liquid Moving Pump

Fluimac Model P400
Port size 1 1/2" (40mm) threaded & flanged.
Maximum flow rate of 400 litres/minute Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

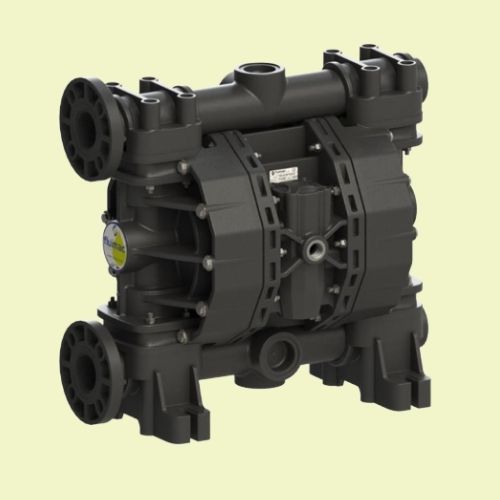

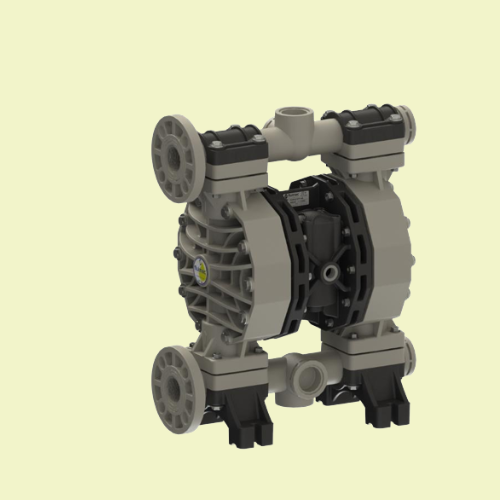

2" Air Operated Diaphragm Pump

Fluimac Model P700
Port Size 2" (50mm threaded and flanged)
Maximum flow rate of 700 litres per minute
Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

EXPLORE OUR PHEONIX ATEX DIAPHRAGM PUMP RANGE

CLICK ON SELECTED PUMP IMAGE FOR DATA PDF

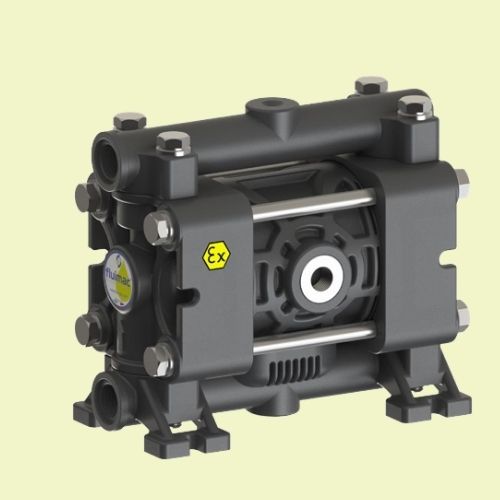

1/4" ATEX Mini AODDP is a perfect Chlorine Metering Pump.

FLUIMAC Model AP 4
Port Size 1/4" thread BSP (6,35mm)
Maximum flow rate of 4 litres/minute.
Maximum pressure is 8 Bar.
Available in PVDF + CF

1/4" ATEX Mini AODDP ideal Chemical Dosing Pump.

Fluimac ATEX Model AP 8
Port size 1/4" thread BSP (6,35mm)
Maximum flow rate of 8 litres/minute.
Maximum pressure is 8 Bar
Available in, PVDF +CF

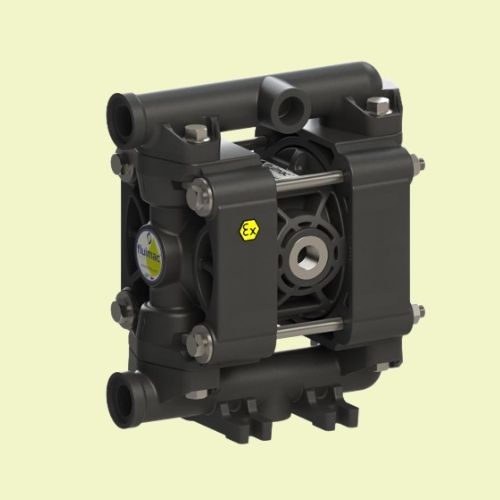

3/8" ATEX Small Sealless Chemical Transfer Pump

Fluimac Model AP 20
Port Size 3/8" (9,5 mm)
Maximum flow rate of 20 litres/minute Maximum pressure is 8 Bar
Available in PVDF +CF,

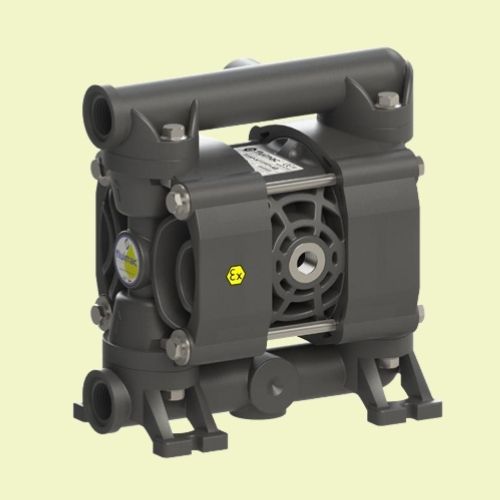

1/2" ATEX Pneumatic Chemical Pump

Fluimac ATEX Model AP 35
Port size 1/2" threaded BSP (12,7 mm)
Maximum flow rate of 35 litr/minute
Maximum pressure is 8 Bar
Available; PVDF +CF, Aluminium, Stainless Steel

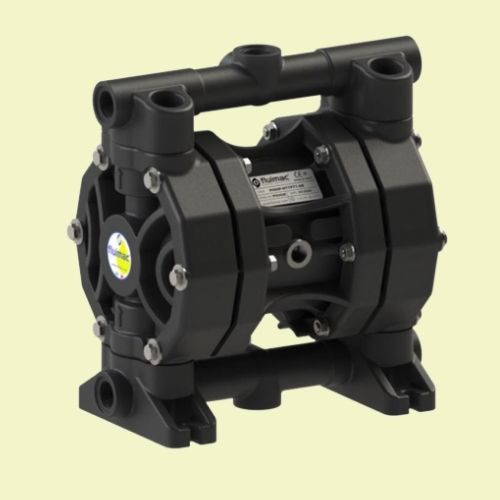

Image ATEX Diaphragm Pump 1/2" Fluimac P55

1/2" ATEX AODDP is ideal for Decanting Chemicals.

Fluimac ATEX Model AP 55
Port size 1/2" threaded BSP (12,7 mm)
Maximum flow rate of 55 litres/minute
Maximum pressure is 8 Bar
Available; PVDF +CF, Aluminium, Stainless Steel

1/2" ATEX Air-operated, Seal-less Chemical Pump.

Fluimac ATEX Model AP 60
Port size 1/2" threaded BSP (12,7 mm)
Maximum flow rate of 60 litres per minute Maximum pressure is 8 Bar
Available; PVDF + CF, Aluminium, Stainless Steel

3/4" ATEX AODDP for Chemical Transfer Pump

Fluimac Model AP 90
Port size 3/4" threaded BSP (19,5mm)
Maximum flow rate of 90 litres per minute Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

1" ATEX Double Diaphragm Pump for Bulk Chemical Transfer Pump

Fluimac Model AP 120
Port size 1" threaded BSP (25,4 mm)
Maximum flow rate of 120 litres per minute. Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

1" ATEX Heavy Duty AODDP Flanged Ports Pump

Fluimac Model AP170
Port size 1" (25,4mm) Flanged
Max flow rate of 170 litres per minute
Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

1" ATEX Heavy Duty Threaded Port Diaphragm Pump

Fluimac Model AP171
Port size 1" (25,4mm)Threaded
Maximum flow rate of 170 litres/minute
Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

1 1/4" ATEX AODD Pump for High Volume Liquid Moving

Fluimac Model AP252
Port size 1 1/4" (31.75 mm) threaded &flanged.
Maximum flow rate of 250 litres/minute
Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

1 1/2" ATEX Heavy Duty Bulk Liquid Moving Pump

Fluimac Model AP400
Port size 1 1/2" (40mm) threaded & flanged.
Maximum flow rate of 400 litres/minute Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

2"ATEX Air Operated Diaphragm Pump

Fluimac Model AP700
Port Size 2" (50mm threaded and flanged)
Maximum flow rate of 700 litres per minute
Maximum pressure is 8 Bar
Available in Polypropylene, PVDF, Aluminium, Stainless Steel

EXPLORE OUR PHOENIX FOOD DIAPHRAGM PUMP RANGE

CLICK ON SELECTED PUMP IMAGE FOR DATA PDF

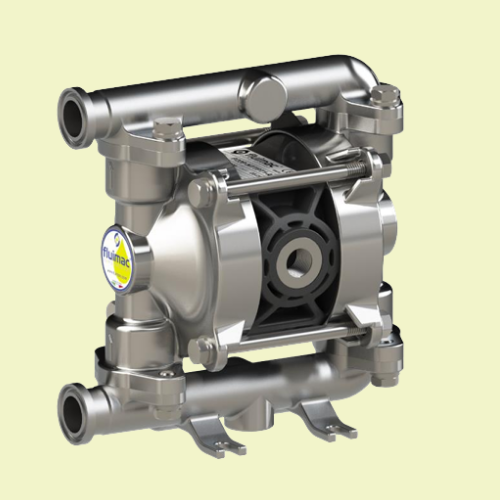

3/8" FDA Certified Air Operated Diaphragm Pump for Vinegar

Fluimac Model PF 20
Port Size 3/4 triclamp BS 4825
Maximum flow rate of 20 litres per minute Maximum pressure is 7 Bar.

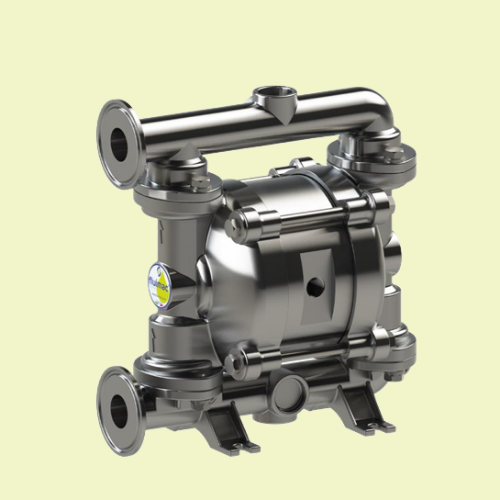

1/2" FDA Certified Air Operated Diaphragm Pump for Wine

Fluimac Model PF 35
Port size 1'' Tri-clamp BS 4825.
Maximum flow rate of 35 litres per minute
Maximum pressure is 7 Bar.

(PF 60 1'' TRI Clamp)

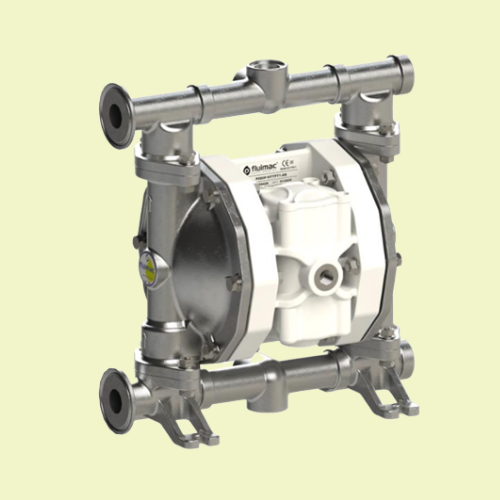

FDA Certified Air Operated Diaphragm Pump for Tomato Paste

Fluimac Model PF 60
Port size 1" tri-clamo BS 4825
Maximum flow rate of 65 litres per minute Maximum pressure is 8 Bar.

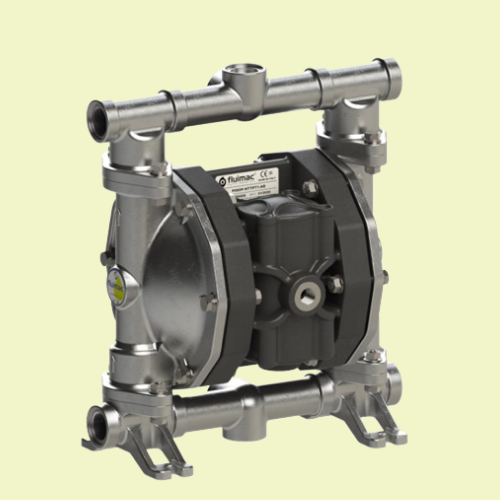

PF 60) 1/2" FDA Certified Air Operated Diaphragm Pump for Brine

Fluimac Model PF 60
Port size 1/2" threaded BSPP (12,7 mm)
Maximum flow rate of 65 litres per minute Maximum pressure is 8 Bar.

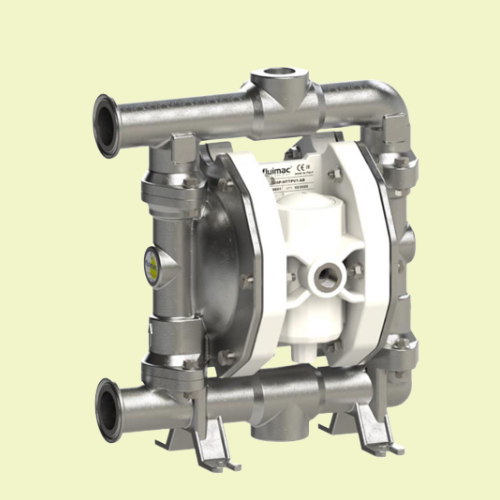

(PF 120 TRI) 1" FDA Certified Air Operated Diaphragm Pump for Chocolate

Fluimac Model PF 120
Port size 1" tri-clamp DN25 ISO 2852 (25,4 mm)
Maximum flow rate of 120 litres per minute. Maximum pressure is 8 Bar.

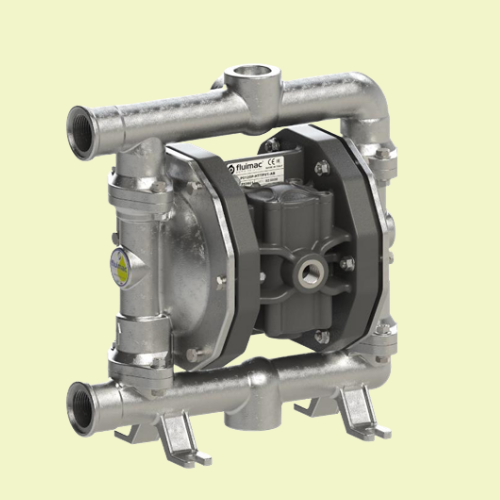

(PF 120) 1" FDA Certified Air Operated Diaphragm Pump for Syrup

Fluimac Model PF 120
Port size 1" threaded BSPP (25,4 mm)
Maximum flow rate of 120 litres per minute. Maximum pressure is 8 Bar.

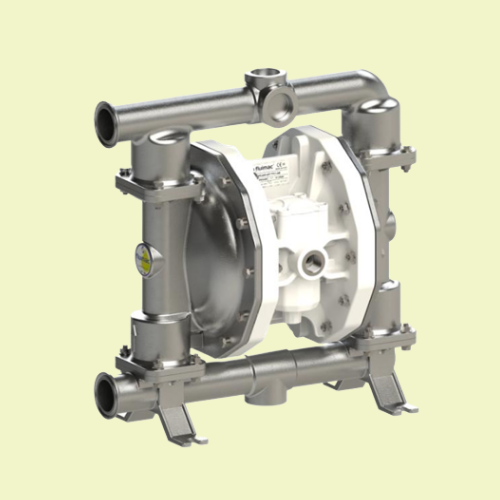

(PF 170 TRI)1 1/2'' FDA Certified Air Operated Diaphragm Pump for Yogurt

Fluimac Model FP170
Port size 1 1/2" tri-clamp BS 4825
Max flow rate of 170 litres per minute
Maximum pressure is 8 Bar

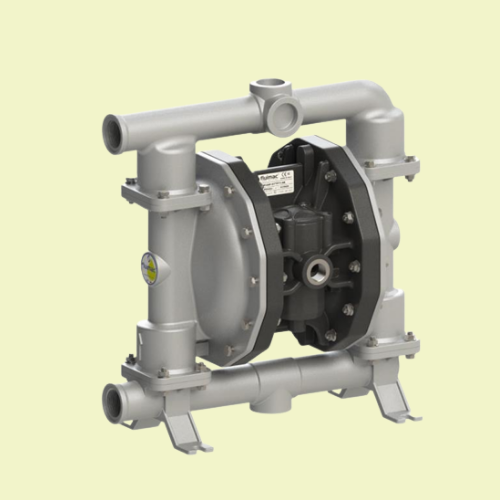

(PF 170)1" FDA Certified Air Operated Diaphragm Pump for Coconut Milk

Fluimac Model FP170
Port size 1" BSPP (25,4mm) Flanged
Max flow rate of 170 litres per minute
Maximum pressure is 8 Bar

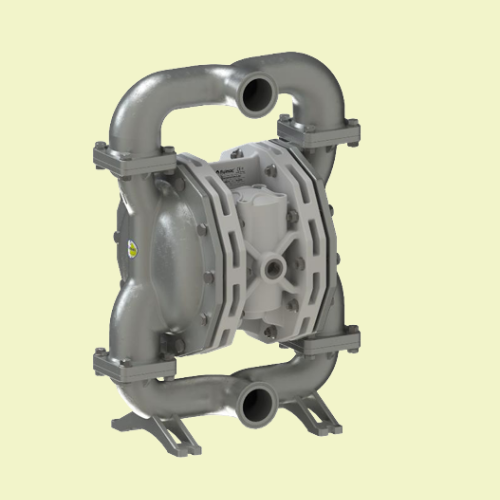

(PF 400 TRI) 1 1/2" FDA Certified Air Operated Diaphragm Pump for Cooking Oil.

Fluimac Model PF 400
Port size Tri-clamp DN40 ISO 2852
Maximum flow rate of 380 litres/minute Maximum pressure is 8 Bar.

(PF 700 TRI) 2" FDA Certified Air Operated Diaphragm Pump for Liquid Eggs

Fluimac Model PF 700
Port Size 3/4" Tri-clamp DN50 IS0 2852
Maximum flow rate of 700 litres per minute
Maximum pressure is 8 Bar.

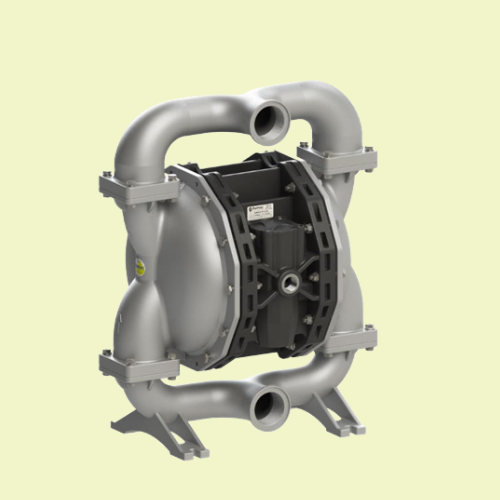

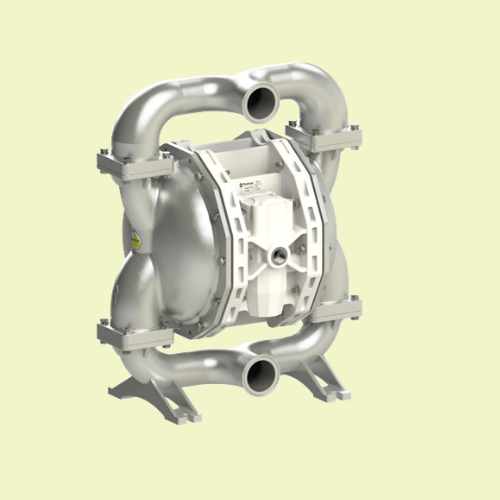

(PF 700) 2" FDA Certified Air Operated Diaphragm Pump for Molasses

Fluimac Model PF 700
Port Size 2" (50mm threaded and flanged)
Maximum flow rate of 700 litres per minute
Maximum pressure is 8 Bar.

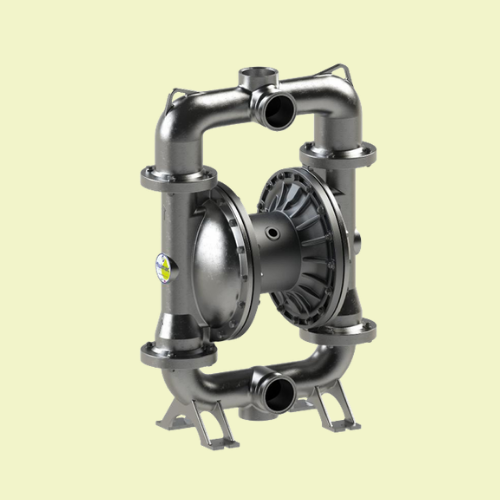

PF 1000 FDA Certified Air Operated Diaphragm Pump for Beer

Fluimac Model PF 1000
Port Size Clamp DN 80 IS0 2852
Maximum flow rate of 1050 litres per minute
Maximum pressure is 8 Bar.

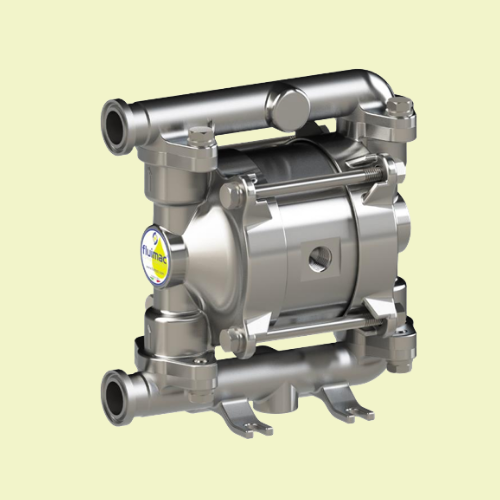

SPF 20 FDA Certified Air Operated Diaphragm Pump for Fruit Juice.

Fluimac Model SPF 20
Port Size 3/4" Tri-clamp BS 4825
Maximum flow rate of 20 litres per minute
Maximum pressure is 7 Bar.

PF 35 FDA Certified Air Operated Diaphragm Pump for

Fluimac Model PF 35
Port Size 1" Tri-clamp BS 4825
Maximum flow rate of 35 litres per minute
Maximum pressure is 7 Bar.

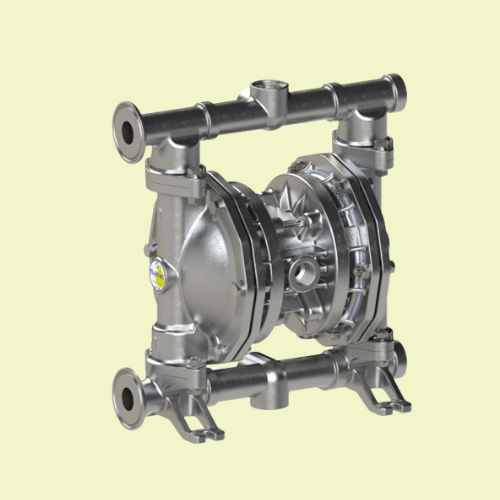

SPF 60 FDA Certified Air Operated Diaphragm Pump for

Fluimac Model SPF 60
Port Size 1" Tri-clamp BS 4825
Maximum flow rate of 65 litres per minute
Maximum pressure is 8 Bar.

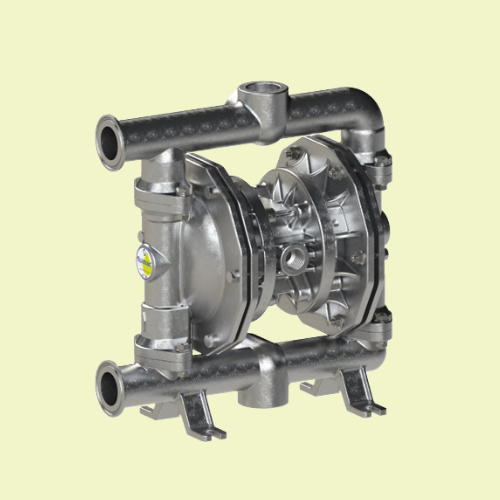

SPF 120 FDA Certified Air Operated Diaphragm Pump for

Fluimac Model SPF 120 Tri-clamp DN25 IS0 2852
Maximum flow rate of 120litres per minute
Maximum pressure is 8 Bar.

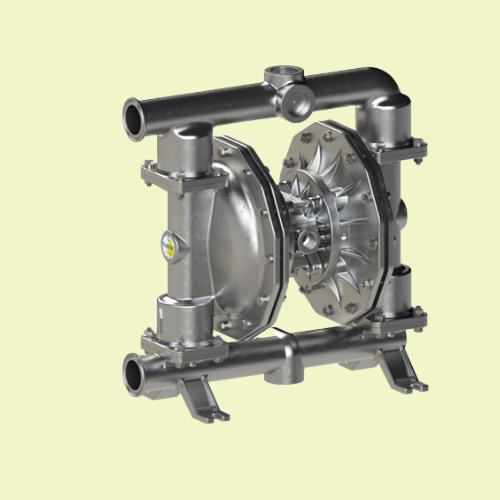

SPF 170FDA Certified Air Operated Diaphragm Pump for

Fluimac Model SPF 1" 1/2 Tri-clamp BS 4825
Maximum flow rate of 170litres per minute
Maximum pressure is 8 Bar.

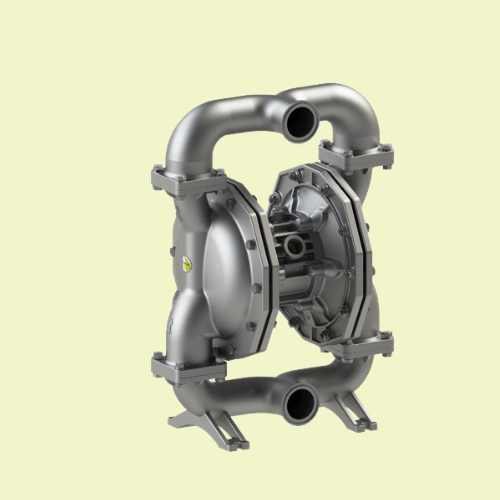

SPF 400 FDA Certified Air Operated Diaphragm Pump for

Fluimac Model SPF 400 Tri-clamp DN40 IS0 2852
Maximum flow rate of 380 litres per minute
Maximum pressure is 8 Bar.

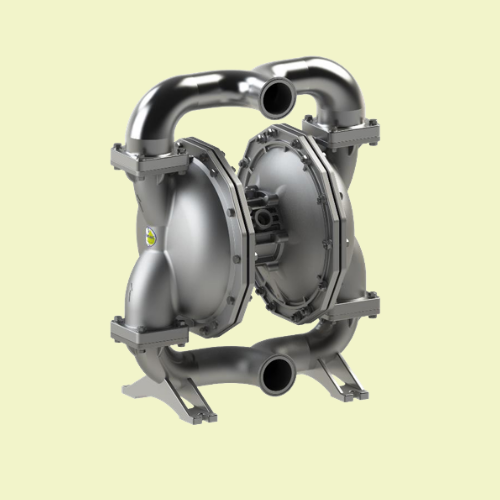

SPF 700 FDA Certified Air Operated Diaphragm Pump for

Fluimac Model SPF 700 Tri-clamp DN50 IS0 2852
Maximum flow rate of 700 litres per minute
Maximum pressure is 8 Bar.
